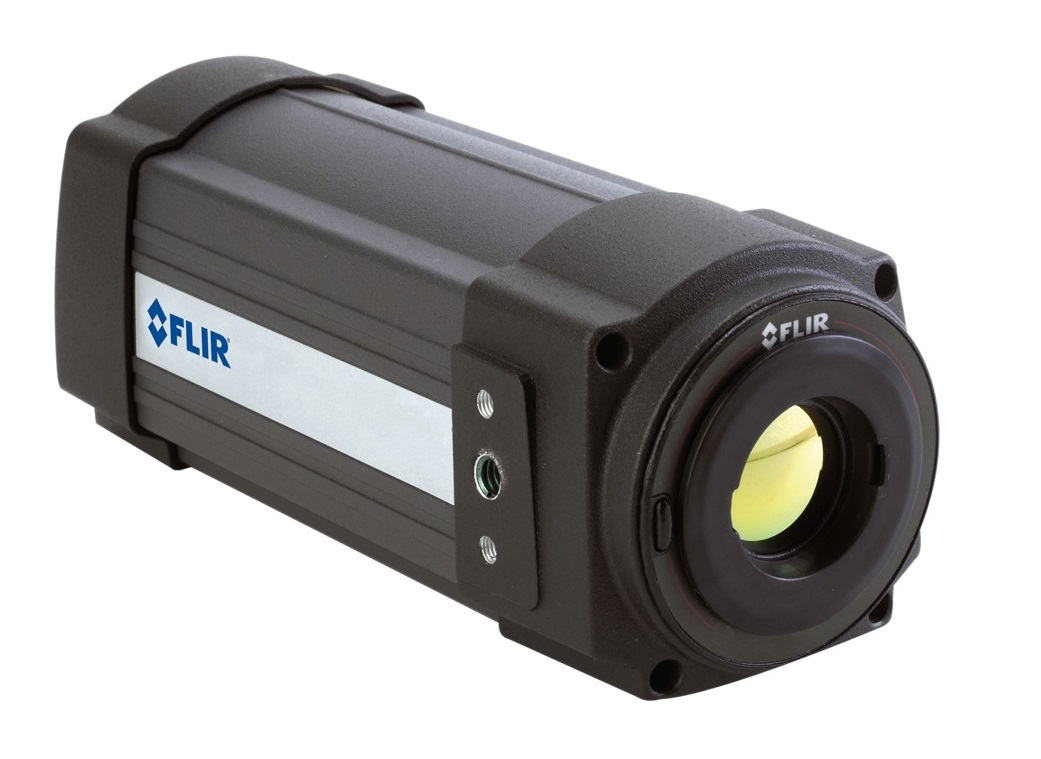

FLIR A320 (9 Hz) w/25° Lens also available 6°, 15°, 45°, 90°

Posted by Rachael Browning

The FLIR A320 Tempscreen (9 Hz) is a camera preconfigured to work well in applications where you need to find temperature deviations in a population of people, utilizing difference temperature alarms with a dynamically updated reference temperature.
In addition, the FLIR A320 Tempscreen provides an affordable and accurate temperature measurement solution for anyone who needs to solve problems that need built in “smartness” such as analysis, alarm functionality, and autonomous communication using standard protocols. The FLIR A320 Tempscreen also has all the necessary features and functions to build distributed single- or multi-camera solutions utilizing standard Ethernet hardware and software protocols.
Key features:
  • Screening: difference temperature alarm with a dynamic updated reference temperature (visualized by the isotherm).
  • Built-in extensive analysis functionality.
  • Extensive alarm functionality, as a function of analysis and more.
  • On schedule: file sending (FTP) or e-mail (SMTP) of analysis results or images.
  • On alarms: file sending (FTP) or e-mail (SMTP) of analysis results or images.
  • MPEG-4 streaming.
  • PoE (Power over Ethernet).
  • Built-in web server.
  • General purpose I/O.
  • 100 Mbps Ethernet (100 m cable, wireless, fiber, etc.).
  • Synchronization through SNTP.
  • Composite video output.
  • Multi-camera utility software: FLIR IP Config and FLIR IR Monitor included.
  • Open and well-described TCP/IP protocol for control and set-up.
  • 16-bit 320 × 240 pixel images semi-real time, signal and temperature linear.
  • Lenses: 25° included, 15° and 45° optional.

Typical applications:

  • Safety with temperature alarms (multi-camera applications), fire prevention, critical vessel monitoring, and power utility asset management.
  • Volume-oriented industrial control (multi-camera installation is possible).
SKU: 42701-1201 Categories: , , ,

Description

Technical Specifications:

Imaging and optical data
IR resolution 320 × 240 pixels
Thermal sensitivity/NETD < 0.05°C @ +30°C (+86°F) / 50 mK
Field of view (FOV) 25° × 18.8°
Minimum focus distance 0.4 m (1.31 ft.)
Focal length 18 mm (0.7 in.)
Spatial resolution (IFOV) 1.36 mrad
Lens identification Automatic
F-number 1.3
Image frequency 9 Hz
Focus Automatic or manual (built in motor)
Zoom 1–8× continuous, digital, interpolating zooming on images
Detector data
Detector type Focal plane array (FPA), uncooled microbolometer
Spectral range 7.5–13 µm
Detector pitch 25 µm
Detector time constant Typical 12 ms
Measurement
Object temperature range –20 to +120°C (–4 to +248°F)
0 to +350°C (+32 to +662°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Measurement analysis
Spotmeter 4
Area 4 boxes with max./min./average/position
Isotherm 1 with above/below/interval
Measurement option Measurement Mask FilterSchedule response: File sending (ftp), email (SMTP)
Difference temperature Delta temperature between measurement functions or reference temperature
Reference temperature Manually set or captured from any measurement function
Atmospheric transmission correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correction Automatic, based on signals from internal sensors
Emissivity correction Variable from 0.01 to 1.0
Reflected apparent temperature correction Automatic, based on input of reflected temperature
External optics/windows correction Automatic, based on input of optics/window transmission and temperature
Measurement corrections Global and individual object parameters
Alarm
Alarm functions 6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer
Screening Difference temperature alarm with dynamic updated reference temperature (visualized by the isotherm)±0.5°C (±0.9°F) accuracy at 37°C (98.6°F) with reference
Alarm output Digital Out, log, store image, file sending (ftp), email (SMTP), notification
