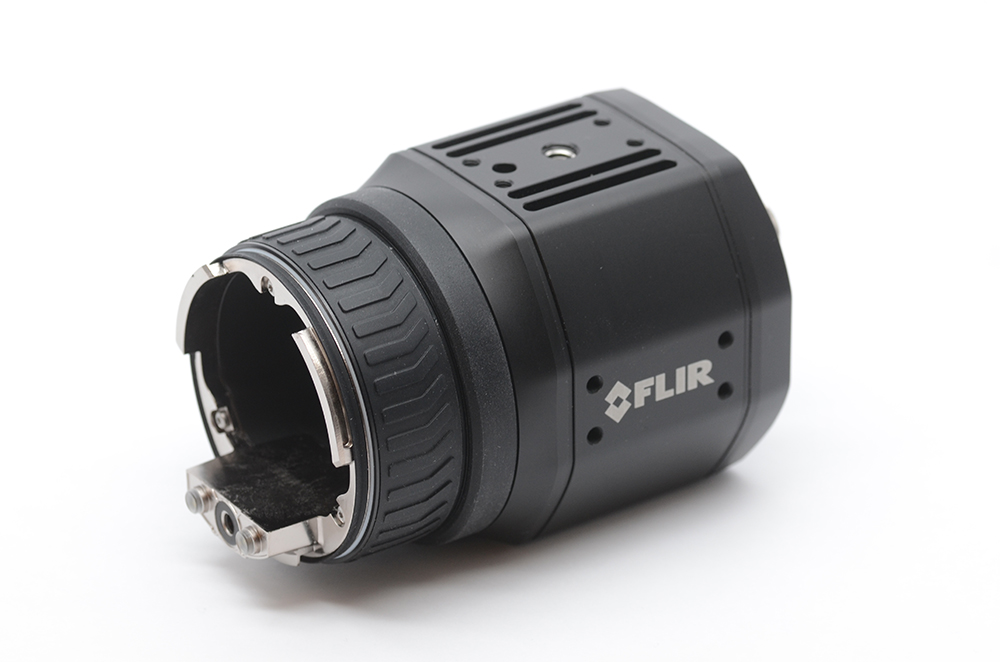

FLIR A700 Thermal Core, 640×480/30Hz,-20°C to 2000°C

Posted by Rachael Browning

The FLIR A700 Thermal Imaging Camera Cores are designed to provide high-quality thermal images and precise temperature measurements with 640 x 480 resolution. Both cores can measure temperatures between -20°C and 2000°C to an accuracy of ±2°C. Inclusion of a precise motorised focus, in addition to a manual focus, means the FLIR A700 Thermal Imaging Camera Cores can take accurate temperature readings of objects throughout the field-of-view. Compatibility with a range of lenses equips the FLIR A700 Thermal Imaging Camera Cores with multiple fields-of-view; as a result, they can be adapted to suit a variety of applications.

The FLIR A700 Thermal Imaging Camera Cores are completely configurable thermal monitoring platforms suitable for process control, quality assurance, condition monitoring, early fire detection and EBT (Elevated Body Temperature) screening (provided the Smart Sensor or Advanced Smart Sensor Configuration Software is purchased).

The FLIR A700 Thermal Imaging Camera Cores MUST be purchased with a compatible lens or lenses and configuration software. This listing is for the FLIR A700 Thermal Imaging Camera Cores ONLY.

The user MUST select one of the following configuration software programs:

  • Smart Sensor
  • Image Streaming
  • Advanced Smart Sensor
  • Advanced Image Streaming

The user MUST also purchase one or more of the following lenses:

  • 14°
  • 24°
  • 42°

There are a number of OPTIONAL features also available. The user can choose to include one or more of the following in his/her FLIR A700 Thermal Imaging Camera configuration:

  • Visible Camera with MSX
  • Wi-Fi
  • Macro Mode (only for use with a 24° lens)
SKU: 85900-0000 Categories: , , ,

Description

Technical Specifications:

Imaging and optical data
Infrared resolution 640× 480 pixels
Thermal sensitivity (NETD) <30 mK, 42° @ +30°C (+86°F)
<40 mK, 24° @ +30°C (+86°F)
<50 mK, 14° @ +30°C (+86°F)
Field of view (FOV) Depending on lens used; see lens specification
Minimum focus distance Depending on lens used; see lens specification
Focal length Depending on lens used; see lens specification
Spatial resolution (IFOV) Depending on lens used; see lens specification
Lens identification Automatic
f-number Depending on lens used; see lens specification
Image frequency 30 Hz
Focus One-shot contrast
Motorized
Manual
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 12 µm
Measurement
Camera temperature range –20 to 120°C (–4 to 248°F)
0 to 650°C (32 to 1202°F)
300 to 2000°C (572 to 3632°F)
Object temperature range and accuracy(for ambient temperature 15–35°C (59–95°F)) Range –20 to 120°C (–4 to 248°F):
–20 to 100°C (–4 to 212°F),
accuracy ±2°C (±3.6°F)
100 to 120°C (212 to 248°F),
accuracy ±2%
Range 0 to 650°C (32 to 1202°F):
0 to 100°C (32 to 212°F),
accuracy ±2°C (±3.6°F)
100 to 650°C (212 to 1202°F),
accuracy ±2%
Range 300 to 2000°C (572 to 3632°F):
accuracy ±2%*

* For 42° lens; accuracy is ±3% in the range 1800 to 2000°C.
