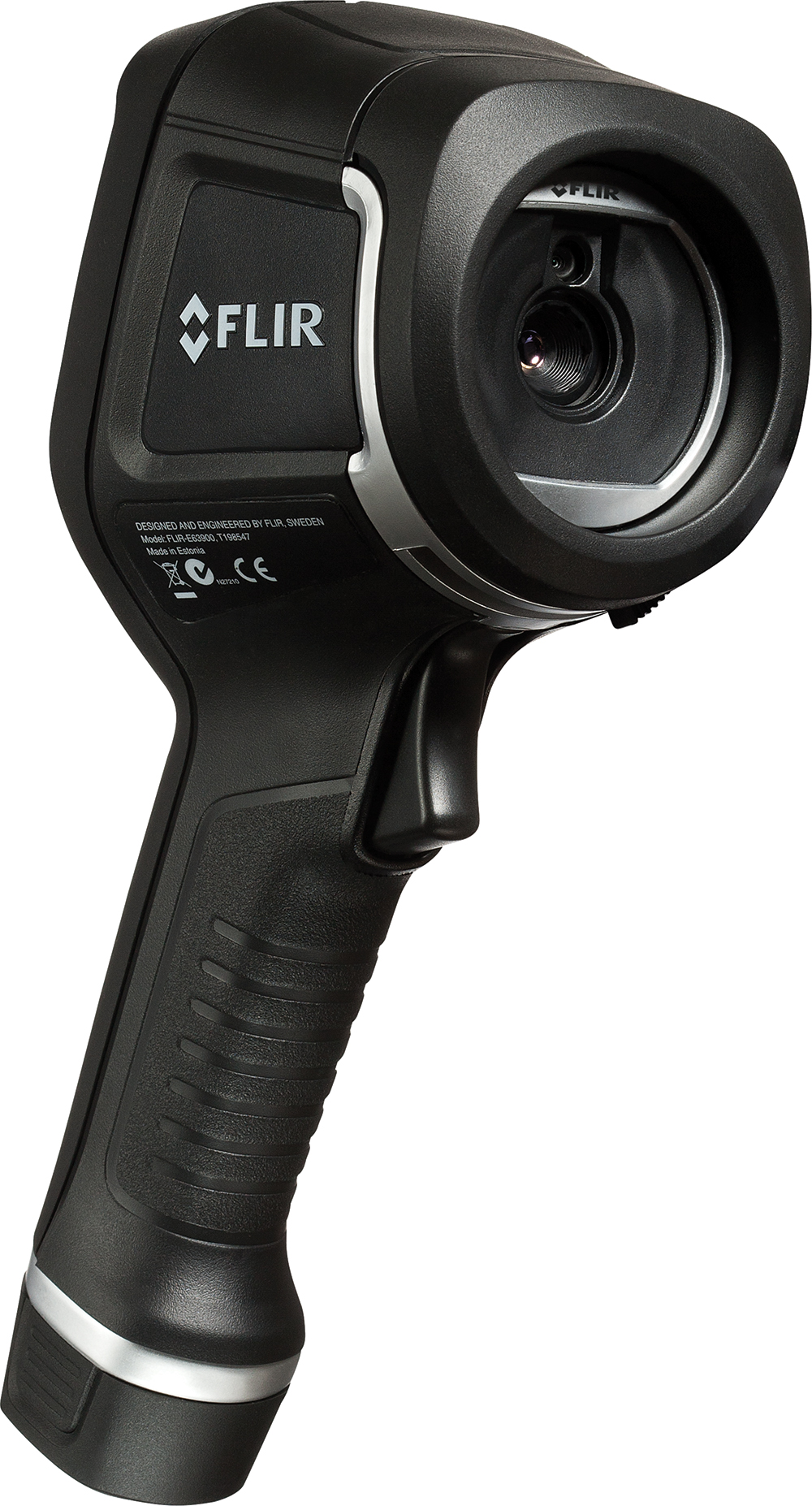

FLIR E4 IR Camera w/MSX and WiFi 80 x 60 Resolution/9Hz

Posted by Rachael Browning

The FLIR Ex series cameras are point-and-shoot infrared cameras that give you access to the infrared world. A FLIR Ex series camera is an affordable replacement for an infrared thermometer, providing a thermal image with temperature information in every pixel. The new MSX and visual formats make the cameras incomparably easy to use.The FLIR Ex series cameras are user-friendly, compact, and rugged, for use in harsh environments. The wide field of view makes them the perfect choice for building applications.

Key Features:

  • Easy to use: The FLIR Ex series cameras are fully automatic and focus-free with an intuitive interface for simple measurements in thermal, visual, or MSX mode.
  • Compact and rugged: The FLIR Ex series cameras’ low weight of 0.575 kg and the accessory belt pouch make them easy to bring along at all times. Their rugged design can withstand a 2 m drop test, and ensures reliability, even in harsh environments.
  • Ground breaking affordability: The FLIR Ex series cameras are the most affordable infrared cameras on the market.
SKU: 63906-0604 Categories: ,

Description


Technical Specifications

Imaging and optical data
IR resolution 80 × 60 pixels
Thermal sensitivity/NETD <0.15°C (0.27°F) / <150 mK
Field of view (FOV) 45° × 34°
Minimum focus distance 0.5 m (1.6 ft.)
Spatial resolution (IFOV) 10.3 mrad
F-number 1.5
Image frequency 9 Hz
Focus Focus free
Detector data
Detector type Focal plane array, uncooled microbolometer
Spectral range 7.5-13μm
Image presentation
Display 3.0 in. 320 × 240 color LCD
Image adjustment Automatic adjust/lock image
Image modes Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Multi Spectral Dynamic Imaging (MSX) IR image with enhanced detail presentation
Picture-in-Picture IR area on visual image
Measurement
Camera temperature range –20 to 250°C (–4 to 482°F)
Object temperature range and accuracy (for ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F)) 0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
100 to 250°C (212 to 482°F): ±2%
Measurement Analysis
Spotmeter Center spot
Area Box with max./min.
Isotherm Above alarm, Below alarm
Emissivity correction Variable from 0.1 to 1.0
Emissivity table Emissivity table of predefined materials
Reflected apparent temperature correction Automatic, based on input of reflected temperature
