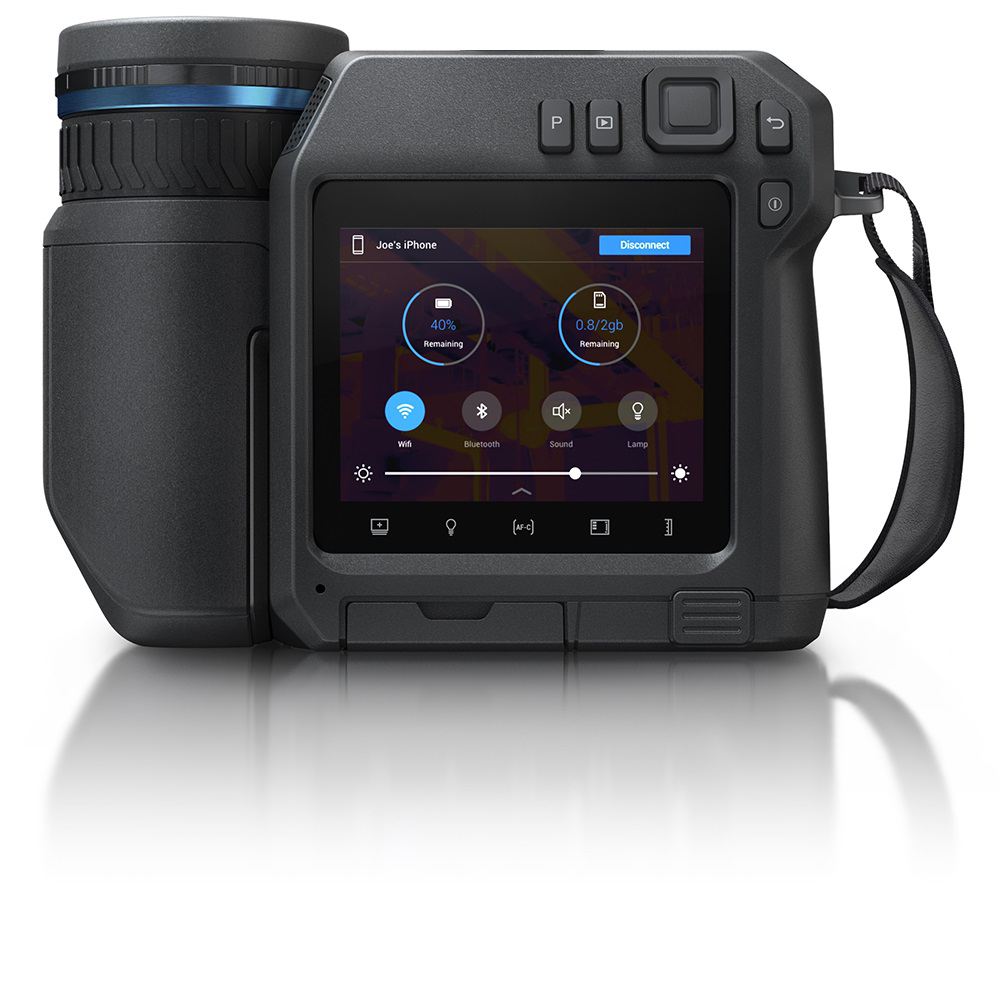

FLIR T530 w/14° Lens, 320×240, -20°C to 650°C Also available with 24°, 42° Lens

Posted by Rachael Browning

The FLIR T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4″ LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

Key Features:

  • MAKE CRITICAL DECISIONS QUICKLY Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

  • FLEXIBLE AND ERGONOMIC The T530’s optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

  • INTUITIVE USER INTERFACE The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.

SKU: 79301-0101 Categories: , ,

Description

Technical Specifications:

Imaging and optical data
Infrared resolution 320 × 240 pixels
UltraMax (super-resolution)1 Yes
NETD <50 mK @ 30°C (86°F)
Field of view 14° × 10°
Minimum focus distance 1.0 m (3.28 ft)
Minimum focus distance with MSX 1.0 m (3.28 ft)
Focal length 29 mm (1.41 in)
Spatial resolution (IFOV) 0.75 mrad/pixel
Available extra lenses 42° (AutoCal)
24° (AutoCal)
6° (service calibration required)
Lens identification Automatic
f number 1.5
Image frequency 30 Hz
Focus Continuous LDM
One-shot LDM
One-shot contrast
Manual
Field of view match Yes
Digital zoom 1–4× continuous
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2) 400
Screen size 4 in
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 04:03:00
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 2
Viewfinder No
Image adjustment Automatic
Automatic maximum
Automatic minimum
Manual
Image presentation modes
Infrared image Yes
Visual image Yes
MSX Yes
Picture in picture Resizable and movable
Gallery Yes
Measurement
Camera temperature range –20 to 120°C (–4 to 248°F)
0 to 650°C (32 to 1202°F)
Optional 300 to 1200°C (572 to 2192°F)
Object temperature range and accuracy (for ambient temp. 15 to 35°C (59 to 95°F) Range –20 to 120°C (–4 to 248°F):
–20 to 100°C (–4 to 212°F): ±2°C (±3.6°F)
100 to 120°C (212 to 248°F): ±2%
Range 0 to 650°C (32 to 1202°F):
0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
100 to 650°C (212 to 1202°F): ±2%
Optional Range 300 to 1200°C (572 to 2192°F): ±2%
Screening mode
Sampling average mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperatureAccuracy (drift): ±0.3°C (±0.5°F)2
Inspection mode
FLIR Inspection route Enabled in the camera
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Automatic maximum/minimum markers within area
Measurement presets No measurements
Center spot
Hot spot
Cold spot
User preset 1
User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement corrections Yes
External optics/windows correction Yes
Alarm
Color alarm (isotherm) Above
Below
Interval
Condensation (moisture/humidity/dewpoint)
Insulation
Measurement function alarm Audible/visual alarms (above/below) on any selected measurement function
