FLIR T560 w/14° Lens, 640×480, -20°C to 1500°C Also available with 24°, 42° Lens

Posted by Rachael Browning

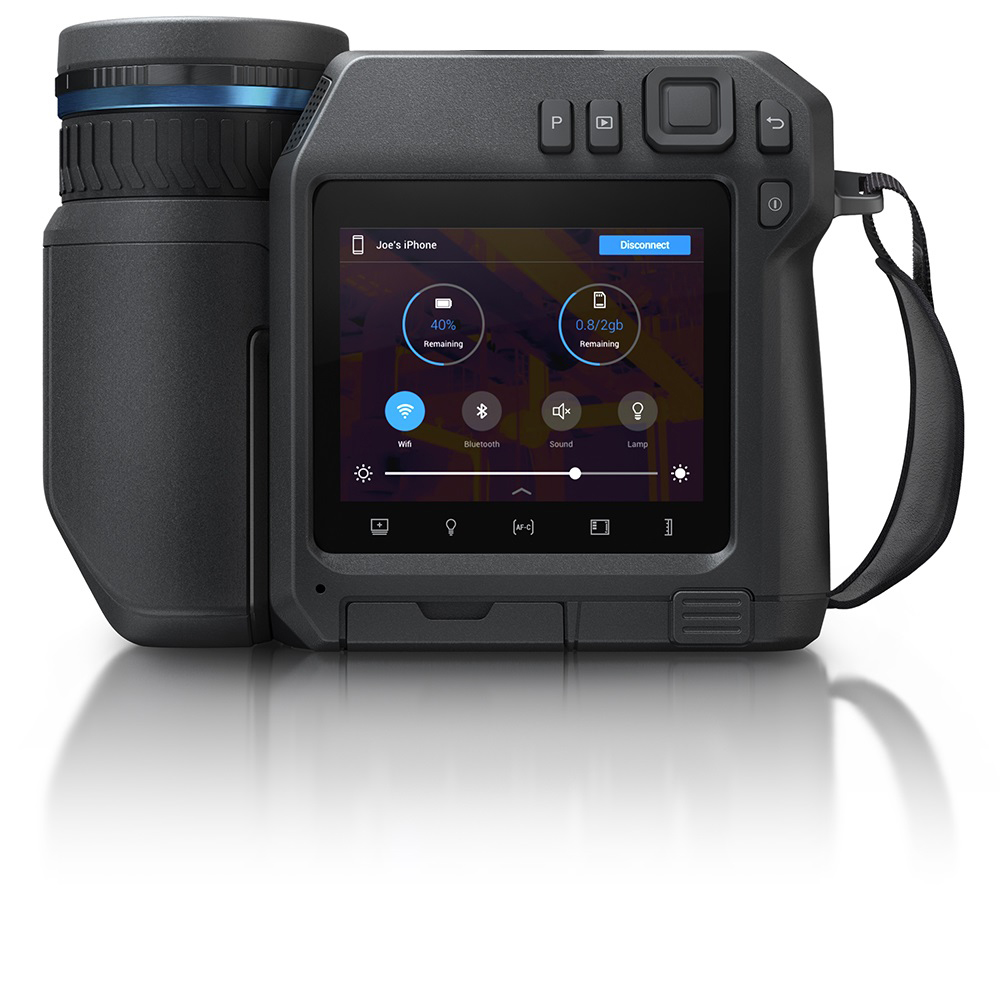

Diagnose potential faults in industrial, electrical, and mechanical systems, or discover temperature anomalies in R&D testing with the 640 × 480 resolution FLIR T560. This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus, making it the perfect non-contact diagnostic tool for condition monitoring and research applications. Streamline electrical/mechanical surveys, troubleshooting, and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro (Route Creator plugin required) so users can record temperature data and imagery in a logical sequence. The built-in Macro Mode allows R&D users to quickly switch from wide angle to close-up analysis without changing the lens. When coupled with Research Studio software, the T560 helps engineers assess unexpected hot spots and find potential design flaws.

Key Features:

  • MAKE CRITICAL DECISIONS QUICKLY Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

  • FLEXIBLE AND ERGONOMIC The T560’s optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

  • INTUITIVE USER INTERFACE The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.

SKU: 89001-0101 Categories: , ,

Description

Technical Specifications:

Imaging and optical data
Infrared resolution 640 × 480 pixels
UltraMax (super-resolution)1 Yes
NETD <50 mK @ 30°C (86°F)
Field of view 14° × 10°
Minimum focus distance 1.0 m (3.28 ft)
Minimum focus distance with MSX 1.0 m (3.28 ft)
Focal length 29 mm (1.41 in)
Spatial resolution (IFOV) 0.4 mrad/pixel
Available extra lenses 42° (AutoCal)
24° (AutoCal)
6° (service calibration required)
Lens identification Automatic
f number 1.5
Image frequency 30 Hz
Focus Continuous LDM
One-shot LDM
One-shot contrast
Manual
Field of view match Yes
Digital zoom 1–8× continuous
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 12 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2) 400
Screen size 4 in
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 04:03:00
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 2
Viewfinder No
Image adjustment Automatic
Automatic maximum
Automatic minimum
Manual
Image presentation modes
Infrared image Yes
Visual image Yes
MSX Yes
Picture in picture Resizable and movable
Gallery Yes
Measurement
Camera temperature range –20 to 120°C (–4 to 248°F)
0 to 650°C (32 to 1202°F)
300 to 1500°C (572 to 2732°F)
Object temperature range and accuracy (for ambient temp. 15 to 35°C (59 to 95°F) Range –20 to 120°C (–4 to 248°F):
–20 to 100°C (–4 to 212°F): ±2°C (±3.6°F)
100 to 120°C (212 to 248°F): ±2%
Range 0 to 650°C (32 to 1202°F):
0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
100 to 650°C (212 to 1202°F): ±2%
Range 300 to 1500°C (572 to 2732°F): ±2%
Screening mode
Sampling average mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperatureAccuracy (drift): ±0.3°C (±0.5°F)2
Inspection mode
FLIR Inspection route Enabled in the camera
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Automatic maximum/minimum markers within area
Measurement presets No measurements
Center spot
Hot spot
Cold spot
User preset 1
User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement corrections Yes
External optics/windows correction Yes
Alarm
Color alarm (isotherm) Above
Below
Interval
Condensation (moisture/humidity/dewpoint)
Insulation
Measurement function alarm Audible/visual alarms (above/below) on any selected measurement function
