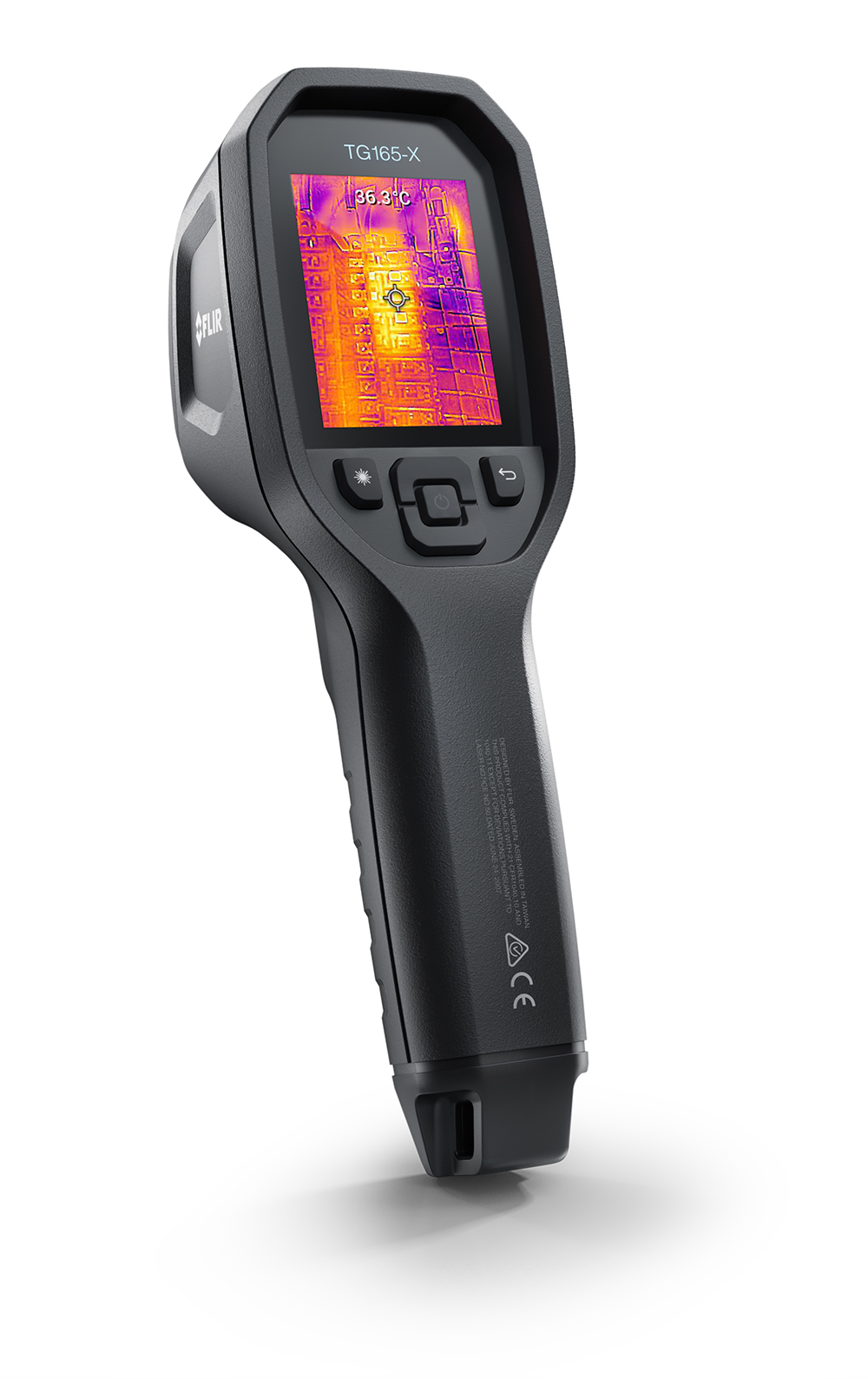

FLIR TG165-X MSX Thermal Camera 80 x 60 Resolution/9Hz

Posted by Rachael Browning

The FLIR TG165-X lets you both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance applications, the FLIR TG165-X reduces diagnostic time while simplifying repair and maintenance reporting. FLIR MSX enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved.

Key features:

  • See beyond the limitations of single-spot IR thermometers with a 80 × 60 (4,800 pixel) true thermal imager.
  • FLIR patented MSX enhancement adds sharp visual detail to thermal images, making it easier to diagnose problems.
  • Measure a wide range of temperatures, from –25°C to 300°C (–13°F to 572°F).
  • Multipoint Laser pointer provides a circle to clearly show the area you are measuring.
  • Rugged and reliable with an IP54 enclosure that protects the camera from dirt, dust, and oil.
SKU: 87501-0101 Categories: ,

Description

Technical Specifications

Imaging and optical data
IR resolution 80 × 60 pixels
Thermal sensitivity/NETD < 70 mK
Field of view (FOV) 51° × 66°
Minimum focus distance 0.3 m (0.98 ft.)
Distance to spot ratio 24:01:00
Pseudo dual range No
Image frequency 8.7 Hz
Focus Fixed
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm
Detector pitch 17 μm
Image presentation
Display resolution 320 × 240 pixels
Surface brightness (cd/m2) 400
Screen size 2.4 in. portrait
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 04:03:00
Display technology TFT
Cover glass material Optical grade silicon
Image adjustment Automatic
Image modes MSX (Multi Spectral Dynamic Imaging)
Visual with temperature reading
Gallery Yes
Measurement
Object temperature range –25 to 300°C (–13 to 572°F)
Object temperature range and accuracy(ambient temp. 15 to 35°C (59 to 95°F)) –25 to 0°C (–13 to 32°F), acc. ±3°C (±7°F)
0 to 50°C (32 to 122°F), acc. ±2.5°C (±5°F)
50 to 100°C (122 to 212°F), acc. ±1.5°C (±3°F)
100 to 300°C (212 to 572°F), acc. ±2.5%
IR temperature resolution 0.1℃ (0.2°F)
Repeatability of reading ±1% of reading or ±1℃ (2℉), whichever is greater
Response time 150 ms
IR thermometer measurement Continuous scanning
Minimum measurement distance 0.26 m (0.85 ft.)
